CarbLift Pro
-
product info
elevate your fizz!!
use this custom base to raise your aarke carbonator pro so you can easily feed in an external co2 hose into the carbonator from a large co2 tank and enjoy continuous, effortless carbonation.
improved! featuring secure, non-slip feet.
say goodbye to slips and slides! the updated design includes high-quality non-slip feet, ensuring your CarbLift Pro stays exactly where you need it.
buy the new CarbLift Pro @alloatech studios tsy store
image gallery(1)
- - if you click on an image you can scroll through the gallery of all images on this page
check out the recommended product list below to see the complete list of products used for my setup
for detailed installation instructions and tips, check out the instructions section below
-

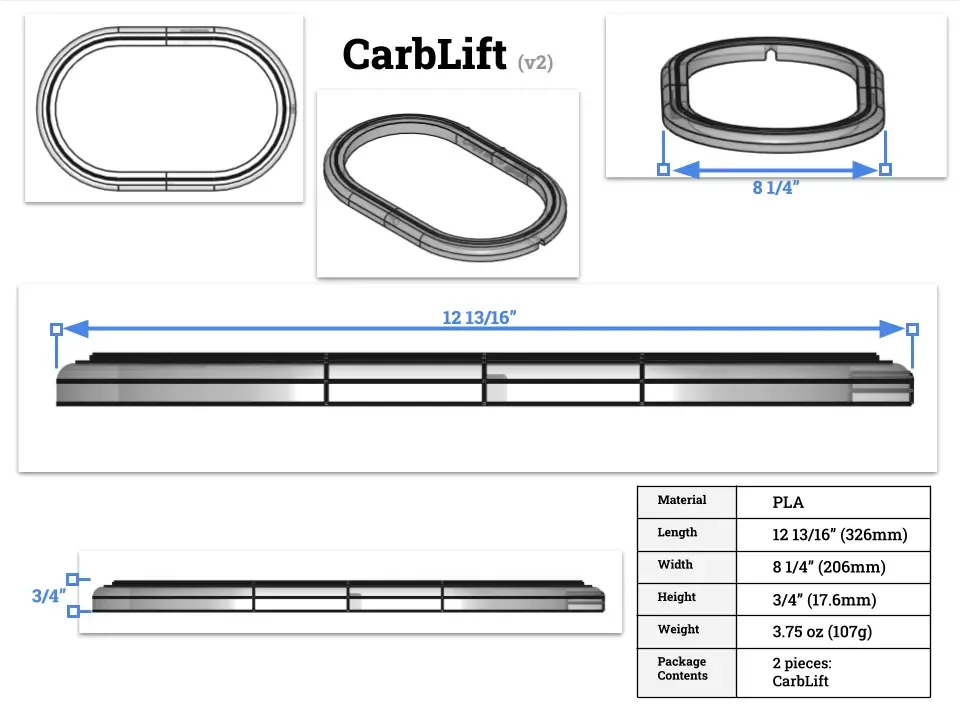

specifications
durable and reliable: made from durable PLA.
compatible with aarke carbonator pro check it out @
-

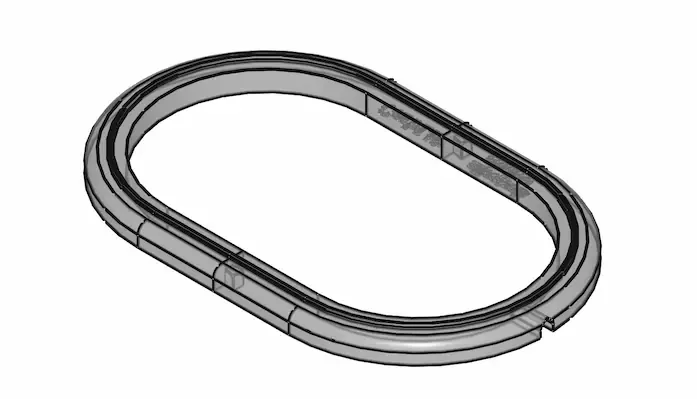

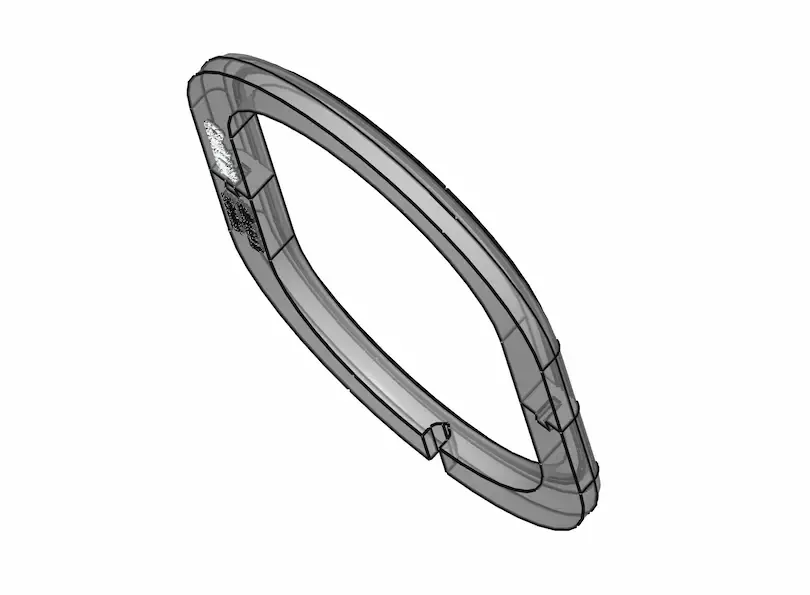

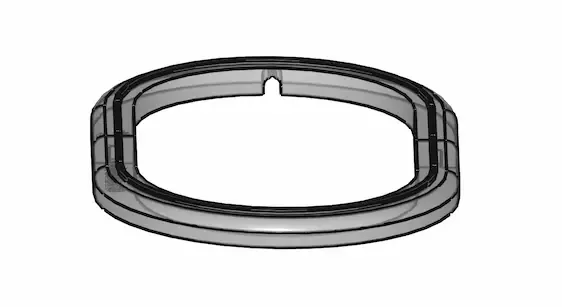

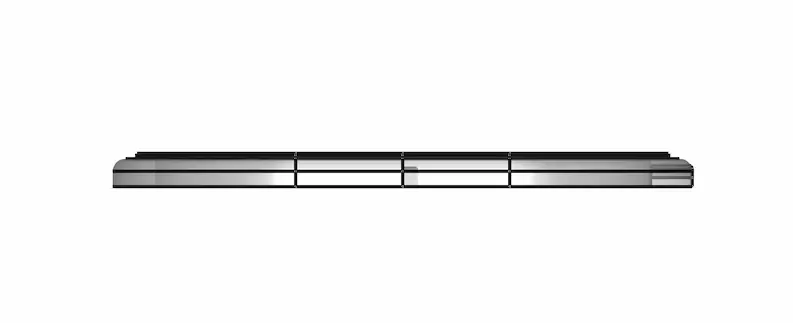

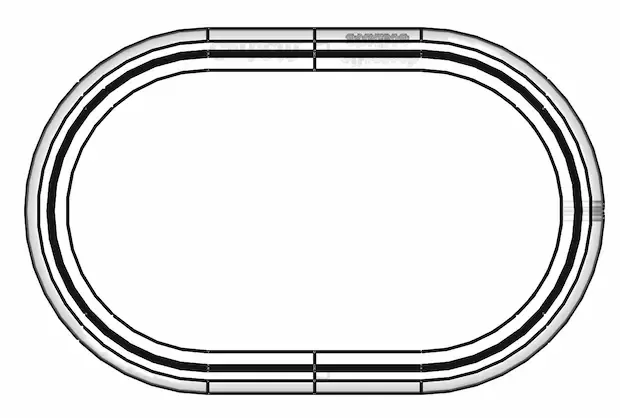

3d model
modeled with 3d parametric modeler FreeCAD
-
3d print
3d printed with bambu lab x1c bambu lab x1c
-
product list (1)
- - disclaimer: this site contains affiliate links. if you click on a link and make a purchase, i may earn a commission at no extra cost to you. i appreciate your support !!
-
CarbSocket
tired of the hassle and cost of changing tiny co2 tanks? the CarbSocket simplifies the process, allowing you to easily connect larger co2 tanks to your aarke carbonator pro.
-
CarbLift (for aarke Pro & 3 models)
use this custom base to raise your aarke carbonator pro or carbonator 3 so you can easily feed in an external co2 hose into the carbonator from a large co2 tank and enjoy continuous, effortless carbonation.
buy the CarbLift Pro for your aarke carbonator pro @alloatech studios tsy store
buy the CarbLift 3 for your aarke carbonator 3 @alloatech studios tsy store
-
aarke carbonator pro
stylish, durable and reliable: after much research this is my favorite(1) carbonator on the market
- here is my setup
- here is my setup
-
co2 tanks
most common sizes are 5, 10 & 20lb tanks. consider your consumption rate and where you are going to store the tank. more tips(1)
-
- you need to also consider how you are going to run your co2 hose adapter from the tank to the carbonator. also consider the tank material(1), valve type(2) and local availability for refilling(3). more safety tips(4)
- typically aluminum or steel. check for DOT approved.
- look for a cga320 valve
- check out local beverage centers, home brew supply stores, i went to airgas
- store in a cool, dry place. consult a specialist for advice. handle with care.
-
-
co2 adapter hose
upgraded soda machine co2 adapter stainless steel hose with larger pressure gauge, cga320 co2 tank direct hose adapter and tr21-4(1) adapter
- - the CarbSocket was designed specifically for this adapter. you don't have to buy this exact hose adapter, but you'll need this standard hex 1" tr21-4 adapter on one side to fit the aarke carbonator pro and the CarbSocket
-
co2 carbon dioxide detector
indoor air quality monitor 4-in-1 portable co2 monitor, tester for carbon dioxide, temperature & relative humidity, co2 meter
-
instructions
don't use excessive force when fitting the CarbLift Pro together
please note that the CarbLift Pro is made of plastic and may break if excessive force is used. It has been tested extensively, and if you handle it with care, you only need to gently slide the connectors together. and probably only once.
CarbLift Pro compatibility
the CarbLift Pro is designed for use with aarke carbonator pro only. it may not fit other brands or models of carbonators.

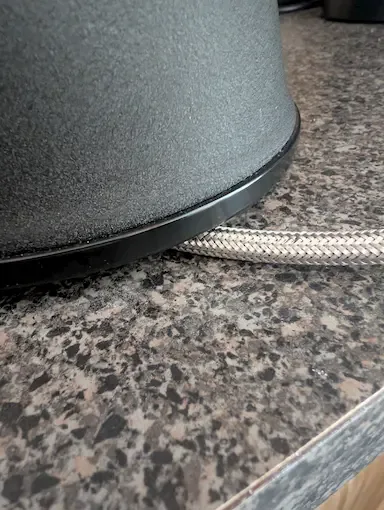

you do not need to remove the hose if it is already connected
ff an external co2 hose is already connected to the carbonator, you can leave it in place while assembling the CarbLift Pro. this will save time and reduce the risk of damaging the connectors by repeatedly attaching and detaching the hose.
simply assemble the CarbLift Pro with the hose in the middle. when setting the aarke carbonator pro on top of the CarbLift Pro, align the hose with the access cutout on the bottom-back of the CarbLift Pro before placing it on the counter.
keep your fingers close to the connectors
when sliding the connectors together, keep your fingers close to the seams. This helps prevent applying excessive force at non-planar angles, which could snap the connection points.
-

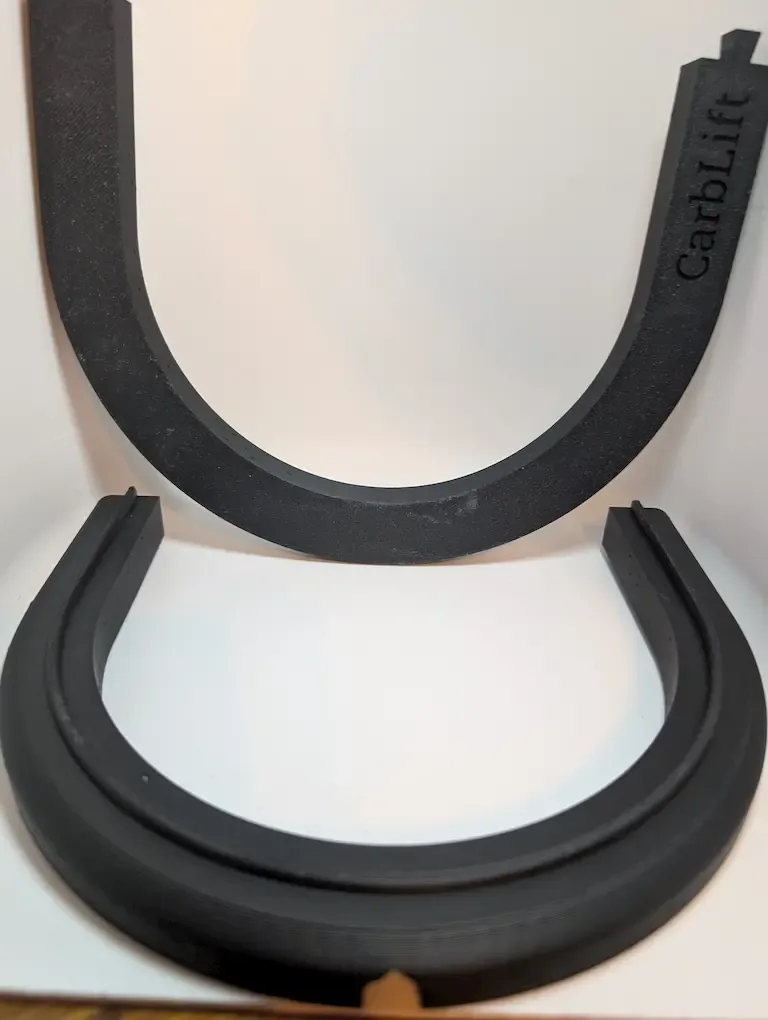

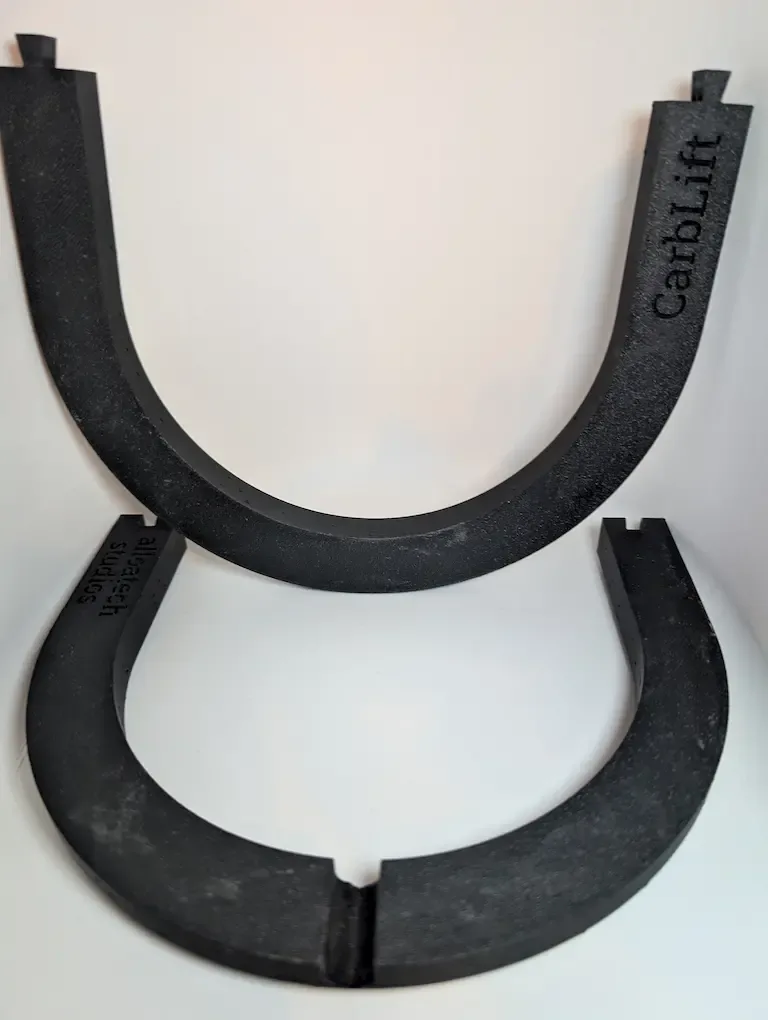

align the connectors
each CarbLift Pro piece has a male and female connector on the bottom. align these connectors like puzzle pieces.
the connector groove is on the flat bottom of the CarbLift Pro and the exposed curved top doesn't show the connector wedge.
-
fit the connectors together
use steady, firm pressure
apply steady, firm pressure when fitting the connectors together to avoid damaging the plastic components. Handle with care to ensure a secure fit without using excessive force.
alternate pressing either side
when fitting the connectors together, alternate pressing on either side of the connector to ensure an even and secure fit. this helps to avoid applying too much pressure on one side, which could potentially damage the plastic components.
apply back pressure while pushing the male connector until it is securely seated in the groove.
-

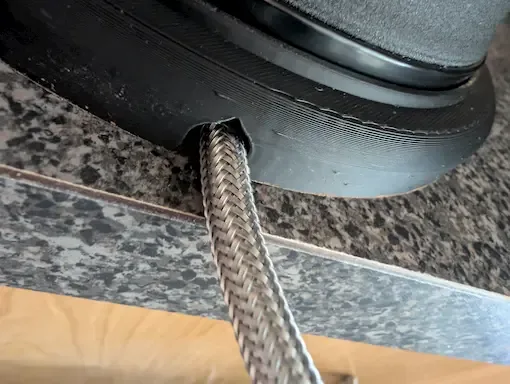

fit the hose through the back groove
it doesn't need to be perfectly aligned and can be adjusted after placing the aarke carbonator pro on the countertop.
get some extra hands if you need it
there are plenty of moving parts here. after dozens of tests the process has almost become second nature to me but early on it was a group effort.
-
place the aarke carbonator pro on the CarbLift

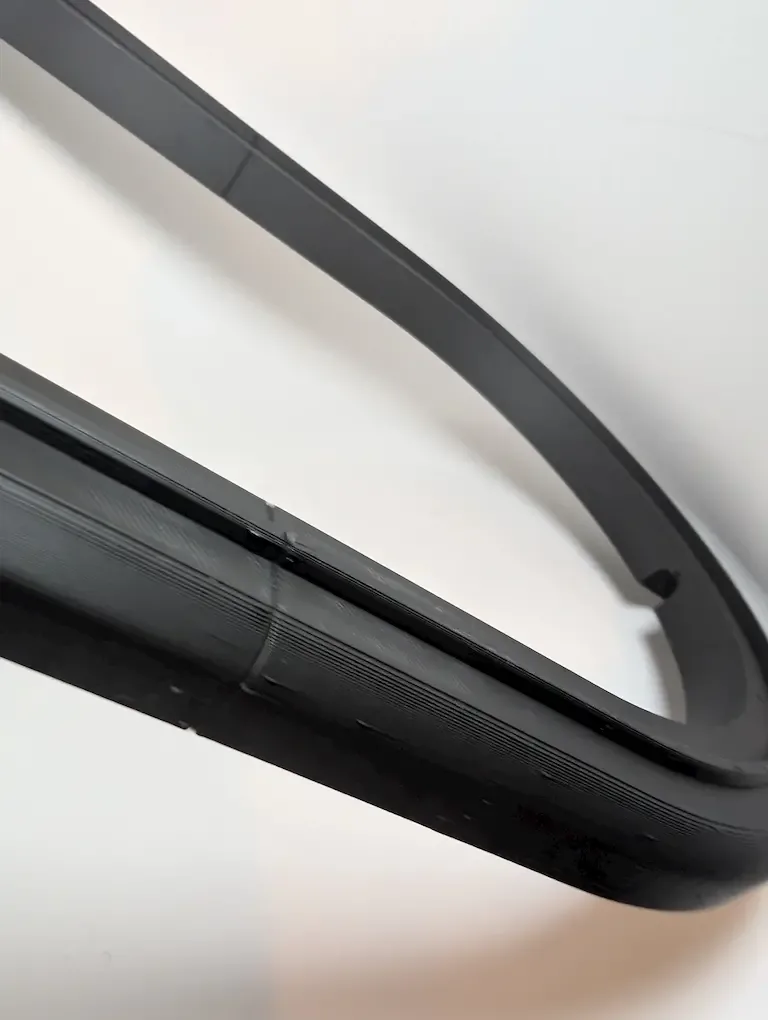

solid base, low profile design
the CarbLift Pro features a solid base and low profile design, ensuring stability and a sleek appearance. its custom fit for the aarke carbonator pro allows for easy integration into your setup
the CarbLift Pro is custom-made for the aarke carbonator pro. it should fit snugly inside the inner top rail and remain level.
